QUAB1530

Fairhaven Range

QUAY Decorative Exterior Marine Grade Surface mounted Downlight

Round Marine Grade 150mm Dia x 300mm Height  IP65

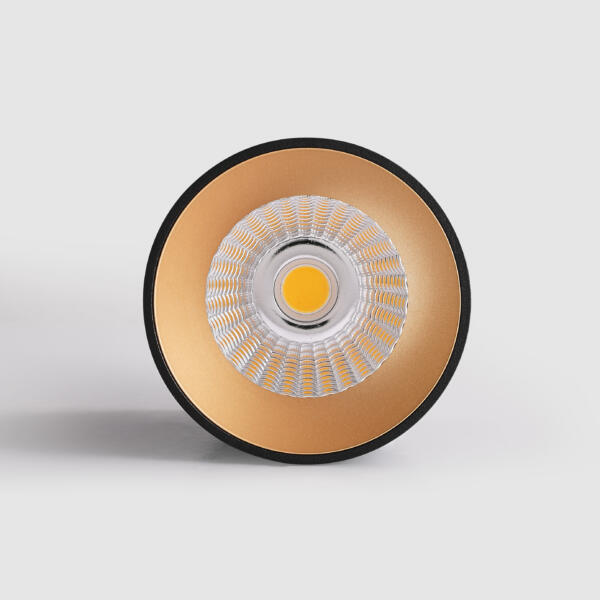

The Fairhaven Quay Marine Grade surface mounted decorative down lighter with coloured reflector options.   150x300mm  is a single-optic LED cylindrical exterior surface mounted downlight with integral gear.   Heavy duty marine grade for the harshest environments, making it ideal for coastal outdoor applications.

  • Aluminium housing with corrosion and UV resistant powdercoat.
  • Standard finishes: Black or white – custom finishes available.
  • Reflector finishes:  Black, white and Gold
  • 8mm flush toughened glass.
  • CREE/Bridgelux COB LED
  • CRI80  or CRI90
  • optional beam angles: 12°/24°/36°/60° beam spread options
  • 3000K/4000K/6000K
  • Integral driver – 220-240V
  • SAA tested and compliant.
  • IP65
  • IK07 vandal resistant
  • Class 1
  • 5 Year warranty
  • Photo-metric files available

Product selection and choices

QUABB1530-15     Black/Black Reflector 150x300mm IP65 1x15W S/mtd Downlighter                                       350mA     1723Lm

QUABW1530-15     Black/White Reflector 150x300mm IP65 1x15W S/mtd Downlighter                                     350mA     1723Lm

QUABG1530-15     Black/Gold Reflector 150x300mm IP65 1x15W S/mtd Downlighter                                        350mA     1723Lm



QUAWB1530-15     White/Black Reflector 150x300mm IP65 1x15W S/mtd Downlighter                                   350mA     1723Lm

QUAWW1530-15     White/White Reflector 150x300mm IP65 1x15W S/mtd Downlighter                                 350mA     1723Lm

QUAWG1530-15     White/Gold Reflector 150x300mm IP65 1x15W S/mtd Downlighter                                     350mA     1723Lm



QUABB1530-20     Black/Black Reflector 150x300mm IP65 1x20W S/mtd Downlighter                                       500mA     2335Lm

QUABW1530-20     Black/White Reflector 150x300mm IP65 1x20W S/mtd Downlighter                                     500mA     2335Lm

QUABG1530-20     Black/Gold Reflector 150x300mm IP65 1x20W S/mtd Downlighter                                        500mA     2335Lm



QUAWB1530-20     White/Black Reflector 150x300mm IP65 1x20W S/mtd Downlighter                                   500mA     2335Lm

QUAWW1530-20     White/White Reflector 150x300mm IP65 1x20W S/mtd Downlighter                                 500mA     2335Lm

QUAWG1530-20     White/Gold Reflector 150x300mm IP65 1x20W S/mtd Downlighter                                     500mA     2335Lm



QUABB1530-30     Black/Black Reflector 150x300mm IP65 1x30W S/mtd Downlighter                                       750mA     3508Lm

QUABW1530-30     Black/White Reflector 150x300mm IP65 1x30W S/mtd Downlighter                                     750mA     3508Lm

QUABG1530-30     Black/Gold Reflector 150x300mm IP65 1x30W S/mtd Downlighter                                        750mA     3508Lm



QUAWB1530-20     White/Black Reflector 150x300mm IP65 1x20W S/mtd Downlighter                                   750mA     3508Lm

QUAWW1530-20     White/White Reflector 150x300mm IP65 1x20W S/mtd Downlighter                                 750mA     3508Lm

QUAWG1530-20     White/Gold Reflector 150x300mm IP65 1x20W S/mtd Downlighter                                     750mA     3508Lm



For more information and pricing please contact Bluelab Design sales team
